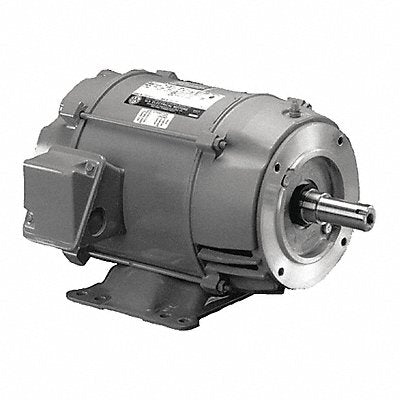

Motor 3PH 1HP 1800 575V EFF 85.5 ODP
Manufacturer: U.S. MOTORS
Jahnda Part Number: 82W99N
EA
Description
Motor 3-Phase Open Dripproof Motor Enclosure Design 1 HP Nameplate RPM 1 760 Frame 143T Voltage 575V 60 Hz Hz Three Phase Full Load Amps 1.3 A Rigid Base Motor Mounting Type Ins. Class F Motor Service Factor 1.15 Motor Frame Material Steel Max Ambient Temp 104 Degrees F CCW Motor Shaft Rotation Nominal Efficiency 85.5 Percent CSA Certified ENERGY cURus
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 30.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
