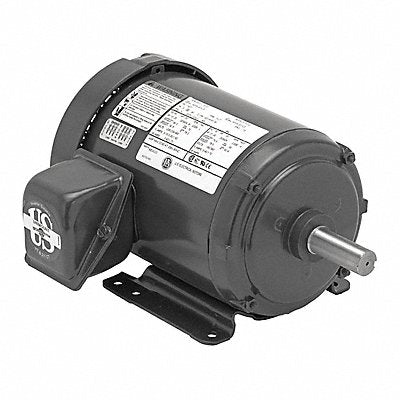

Motor 3PH 1HP 1800 208-230/460V 56HZ
Manufacturer: U.S. MOTORS
Jahnda Part Number: 79L49K
EA
Description
Motor Three Phase Motor Design 3-Phase 1 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 208V 230V 460V Full Load Amps 3.3-3.2/1.5 A 56HZ Frame Usable @ 208V Yes Hz 60 Hz Motor Service Factor 1.25 Max Ambient Temp 104 Degrees F Motor Thermal Protection None Ins. Class B NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CCW Motor Mounting Type Rigid Base Motor Shaft Design Keyed Motor Frame Material Steel
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 36.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
