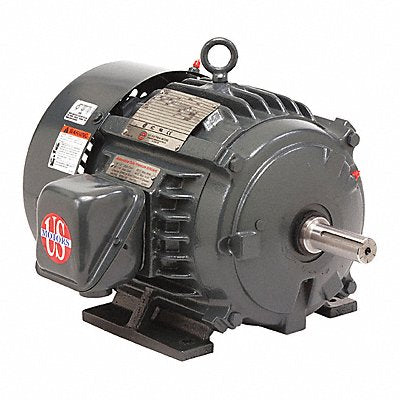

Motor 3PH 1HP 1200 208-230/460 EFF 82.5
Manufacturer: U.S. MOTORS
Jahnda Part Number: 07K39K
EA
Description
Motor Three Phase Motor Design 3-Phase 1 HP Nameplate RPM 1 200 Voltage 208-230/460V Full Load Amps 3.6-3.5/1.8 A 145T Frame Usable @ 208V Yes Hz 60 Hz Motor Service Factor 1.15 Max Ambient Temp 104 Degrees F Ins. Class B F NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Removable Base Regreasable Bearings Motor Frame Material Cast Iron
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 70.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
