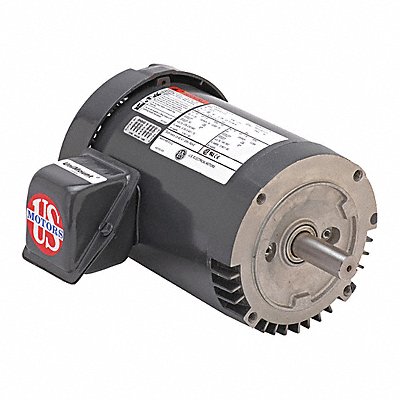

Motor 3PH 15HP 3600 230/460V TEFC VFD VT
Manufacturer: U.S. MOTORS
Jahnda Part Number: 42D48K
EA
Description
Motor Three Phase Motor Design 3-Phase 15 HP Nameplate RPM 3 545 No of Speeds 1 Voltage 230V 460V Full Load Amps 35.0/17.4 A 254T Frame Hz 60 Hz Motor Service Factor 1.15 Max Ambient Temp 104 Degrees F Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Horizontal Footed Motor Mounting Position Horizontal Inverter Rated Yes Motor Shaft Design Keyed
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 202.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
