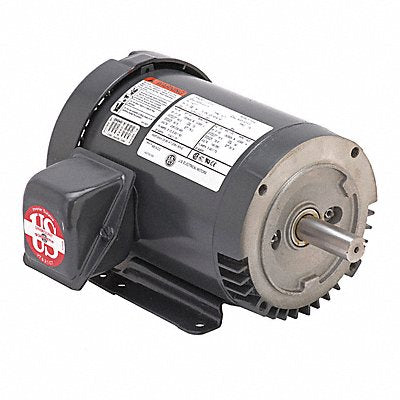

Motor 3PH 15HP 3600 230/460V CCP TCZ
Manufacturer: U.S. MOTORS
Jahnda Part Number: 70W99N
EA
Description
Close Coupled Pump Bearing Protection Shaft Shields Body Dia 11.3 in Bolt Circle Dia 3/4 in Conduit Box Position F1 Duty Cycle Continuous Frame 215 Hz 60/50 Full Load Amps 39.0-36/18 Height 10 7/8 in HP 15 Ins. Class F Length Less Shaft 15 1/2 in Max Ambient Temp 40 Degrees C Max SF Amps 45.0-41.0/20.4 Motor Application Centrifugal Pump Motor Design 3-Phase Motor Efficiency Group Premium Efficient Motor Enclosure Design Totally Enclosed Motor Frame Material Aluminum
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 120.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
