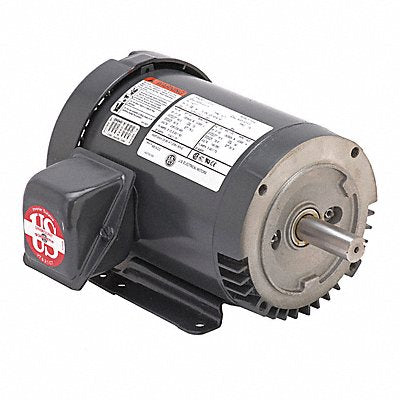

Motor 3PH 15HP 3600 208-230/460V TEFC JM
Manufacturer: U.S. MOTORS
Jahnda Part Number: 76W99N
EA
Description
Close Coupled Pump Bearing Protection Shaft Shields Body Dia 13.4 in Bolt Circle Dia 3/4 in Conduit Box Position F1 Duty Cycle Continuous Frame 254 Hz 60/50 Full Load Amps 39.0-35.0/17.7 Height 12 15/16 in HP 15 Ins. Class F Length Less Shaft 20 1/8 in Max Ambient Temp 40 Degrees C Max SF Amps 50.0-44.0/22.0 Motor Application Centrifugal Pump Motor Design 3-Phase Motor Efficiency Group Premium Efficient Motor Enclosure Design Totally Enclosed
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 180.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
