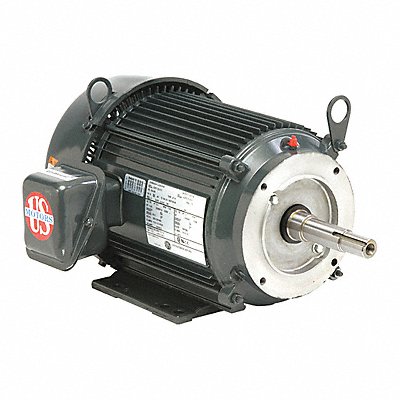

Motor 3PH 15HP 1800 575V EFF 94.5
Manufacturer: U.S. MOTORS
Jahnda Part Number: 08U99N
EA
Description
Motor 3PH 15HP 1800 575V EFF 94.5 Three Phase Motor Design 3-Phase 15 HP Nameplate RPM 1 785 rpm No of Speeds 1 Voltage 575V Full Load Amps 14.2 A 254 Frame Torque 371 ft-lb Max Speed 1 785 RPM 60 Hz Hz Max Operating Frequency 60 Hz Motor Service Factor 1 Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Motor Mounting Type Horizontal Footed
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 255.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
