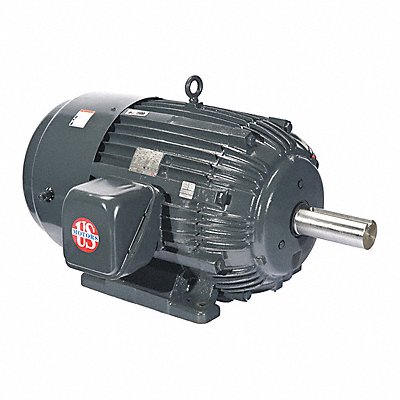

Motor 3PH 150HP 1800 460V TE SD
Manufacturer: U.S. MOTORS
Jahnda Part Number: 64B18K
EA
Description
Motor Three Phase Motor Design 3-Phase 150 HP Nameplate RPM 1 800 Voltage 460V Full Load Amps 172.0 A 445T Frame Hz 60 Hz Motor Service Factor 1.15 Max Ambient Temp 104 Degrees F Ins. Class B F NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Removable Base Regreasable Bearings Motor Frame Material Steel
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 1800.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
