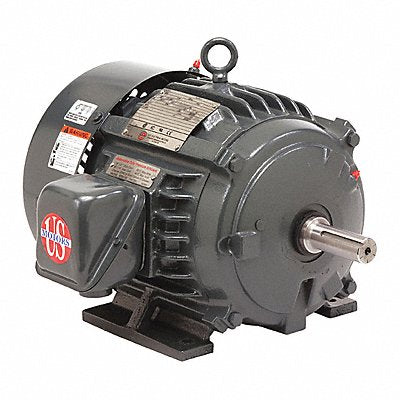

Motor 3PH 150HP 1800 460V TE HD VFD CT
Manufacturer: U.S. MOTORS
Jahnda Part Number: 10I08K
EA
Description
Motor Three Phase Motor Design 3-Phase 150 HP Nameplate RPM 1 785/2 680/90 No of Speeds 1 Voltage 460V Full Load Amps 180.0 A 445T Frame Hz 60 Hz Motor Service Factor 1 Max Ambient Temp 104 Degrees F Duty Cycle Continuous Ins. Class H NEMA Design A Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Horizontal Footed Motor Mounting Position Horizontal Inverter Rated Yes Removable Base Regreasable Bearings
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 1700.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
