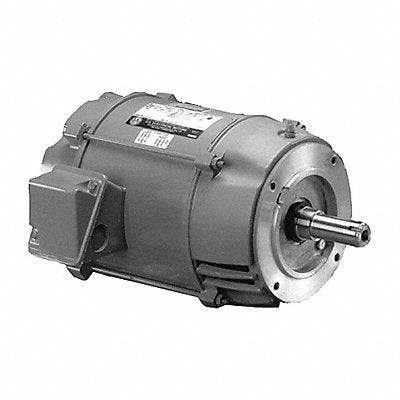

Motor 3PH 150HP 1800 460V ODP VFD
Manufacturer: U.S. MOTORS
Jahnda Part Number: 15G08K
EA
Description
Motor Three Phase Motor Design 3-Phase 150 HP Nameplate RPM 1 785 No of Speeds 1 Voltage 460V Full Load Amps 170.0 A 444T Frame Hz 60 Hz Motor Service Factor 1.15 Max Ambient Temp 104 Degrees F Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Open Dripproof Motor Mounting Type Horizontal Footed Motor Mounting Position Horizontal Inverter Rated Yes Motor Shaft Design Keyed Removable Base Regreasable Bearings Motor Frame Material Steel
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 1118.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
