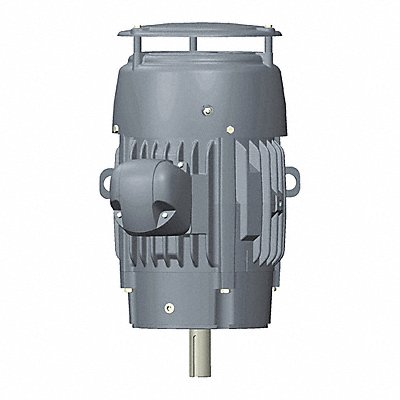

Motor 3PH 150HP 1800 460V EFF 95.8
Manufacturer: U.S. MOTORS
Jahnda Part Number: 00U99N
EA
Description
Motor 3-Phase Totally Enclosed Fan-Cooled Motor Enclosure Design 150 HP Nameplate RPM 1 785/1 475 Frame 445TC Voltage 380V 460V 60/50 Hz Hz Three Phase Full Load Amps 171.0 A Horizontal Footless Motor Mounting Type Ins. Class F Motor Service Factor 1.15 Motor Frame Material Steel Max Ambient Temp 104 Degrees F CW/CCW Motor Shaft Rotation Nominal Efficiency 95.8 Percent CSA Certified ENERGY cURus
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 1750.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
