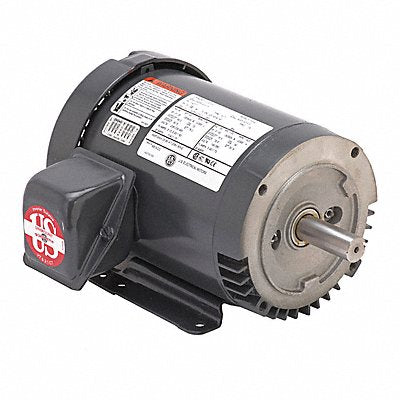

Motor 3PH 15/10HP 2 SPD 460V EFF 86.5
Manufacturer: U.S. MOTORS
Jahnda Part Number: 00H08K
EA
Description
Motor Three Phase Motor Design 3-Phase 10 15 HP Nameplate RPM 1 770/1 180 No of Speeds 2 Voltage 460V Full Load Amps 18.8 A 286T Frame Hz 60 Hz Motor Service Factor 1.25 Max Ambient Temp 104 Degrees F Duty Cycle Continuous Ins. Class F Motor Enclosure Design Totally Enclosed Motor Shaft Rotation CW/CCW Motor Mounting Type Horizontal Footed Motor Mounting Position Horizontal Motor Shaft Design Keyed Removable Base Regreasable Bearings Motor Frame Material Aluminum
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 262.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
