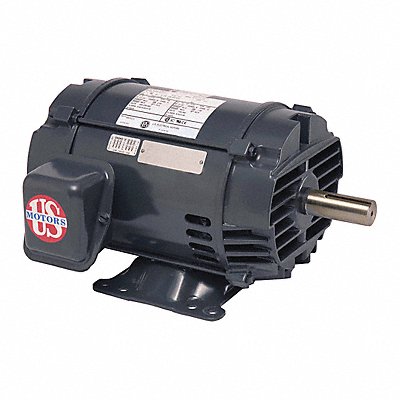

Motor 3PH 10HP 3600 208-230/460V ODP TC
Manufacturer: U.S. MOTORS
Jahnda Part Number: 25H78K
EA
Description
Motor Three Phase Motor Design 3-Phase 10 HP Nameplate RPM 3 507/2 865 No of Speeds 1 Voltage 190V 208V 230V 380V 460V Full Load Amps 24.1/12.0 A 213TC Frame Usable @ 208V Yes Hz 60/50 Hz Motor Service Factor 1.15 Max Ambient Temp 104 Degrees F Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Open Dripproof Motor Mounting Type Horizontal Footed Motor Mounting Position Horizontal Inverter Rated Yes Motor Shaft Design Keyed
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 100.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
