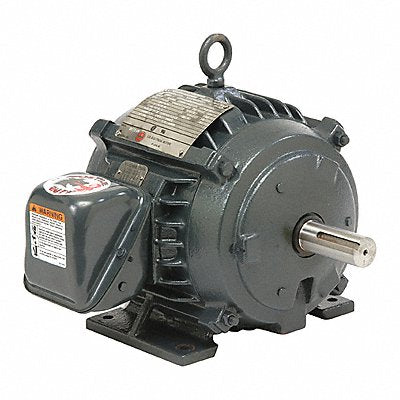

Motor 3PH 10HP 208-230/460V TE TC FTL
Manufacturer: U.S. MOTORS
Jahnda Part Number: 72V58K
EA
Description
Motor Three Phase Motor Design 3-Phase 10 HP Nameplate RPM 3 522 No of Speeds 1 Voltage 208V 230V 460V Full Load Amps 23.5/11.8 A 215TC Frame Usable @ 208V Yes Hz 60 Hz Motor Service Factor 1.15 Max Ambient Temp 104 Degrees F Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Horizontal Footless Motor Mounting Position Horizontal Inverter Rated Yes Motor Shaft Design Keyed
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 120.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
