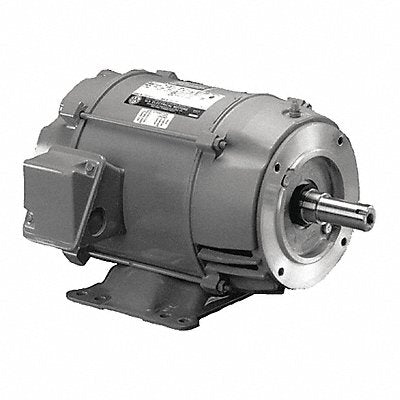

Motor 3PH 10HP 208-230/460V EFF 92.4
Manufacturer: U.S. MOTORS
Jahnda Part Number: 35W99N
EA
Description
Close Coupled Pump Bearing Protection Shaft Shields Body Dia 9.4 in Bolt Circle Dia 7 1/4 in Conduit Box Position F1 Duty Cycle Continuous Frame 215JM Hz 60/50 Full Load Amps 26.3-23.8/11.9 Height 11 3/16 in HP 10 Ins. Class F Length Less Shaft 15 in Max Ambient Temp 40 Degrees C Max SF Amps 30-27.2.0/13.6 Motor Application Damp Dusty or Dirty Environments Specific Requirements of Centrifugal Pumps where the Pump Impeller is Mounted Directly on the Motor Shaft
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 105.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
