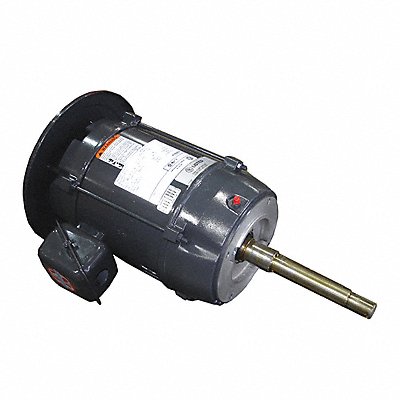

Motor 3PH 10HP 1800 230/460V TE VFD CT
Manufacturer: U.S. MOTORS
Jahnda Part Number: 47W99N
EA
Description
Motor 3-Phase Totally Enclosed Fan-Cooled Motor Enclosure Design 10 HP Nameplate RPM 1 775 Frame 215T Voltage 230V 460V 60 Hz Hz Three Phase Full Load Amps 27.7/13.9 A Horizontal Footed Motor Mounting Type Ins. Class H Motor Service Factor 1 Motor Frame Material Cast Iron Max Ambient Temp 104 Degrees F CW/CCW Motor Shaft Rotation Nominal Efficiency 91.7 Percent CSA Certified UL Listed
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 175.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
