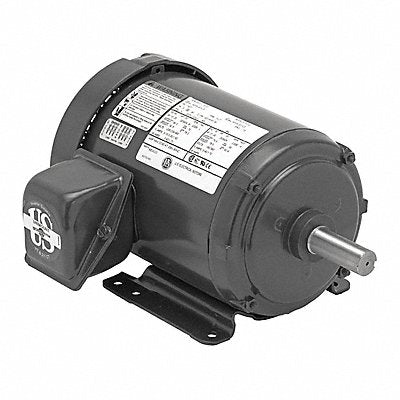

Motor 3PH 10HP 1800 208-230/460V TE JP
Manufacturer: U.S. MOTORS
Jahnda Part Number: 71E68K
EA
Description
Close Coupled Pump Bearing Protection Shaft Shields Body Dia 11.3 in Bolt Circle Dia 3/4 in Conduit Box Position F1 Duty Cycle Continuous Frame 215 Hz 60/50 Full Load Amps 26.5-23.9/12.0 Height 10 1/4 in HP 10 Ins. Class F Length Less Shaft 15 5/8 in Max Ambient Temp 40 Degrees C Max SF Amps 0-30.0/15.0 Motor Application Centrifugal Pump Motor Design 3-Phase Motor Efficiency Group Premium Efficient Motor Enclosure Design Totally Enclosed Motor Frame Material Aluminum
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 120.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
