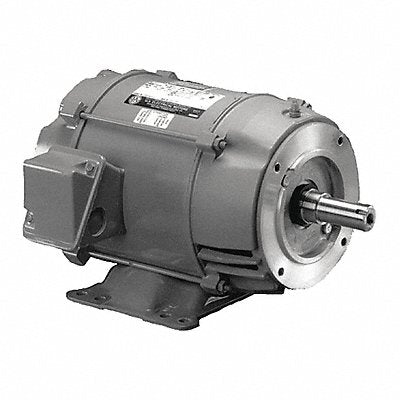

Motor 3PH 10HP 1200 230/460V VFD ODP
Manufacturer: U.S. MOTORS
Jahnda Part Number: 37W99N
EA
Description
Motor 3-Phase Open Dripproof Motor Enclosure Design 10 HP Nameplate RPM 1 185 Frame 256T Voltage 230V 460V 60 Hz Hz Three Phase Full Load Amps 25.1/12.6 A Horizontal Footed Motor Mounting Type Ins. Class F Motor Service Factor 1.15 Motor Frame Material Steel Max Ambient Temp 104 Degrees F Nominal Efficiency 91.7 Percent CSA Certified ENERGY cURus
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 160.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
