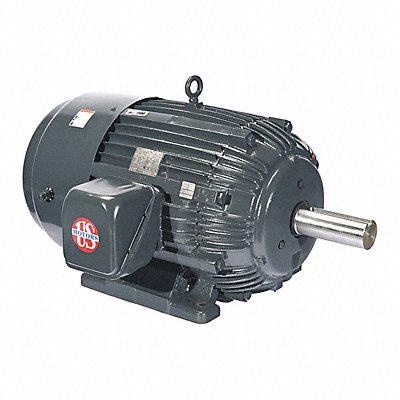

Motor 3PH 100HP 3600 230/460V ODP VFD
Manufacturer: U.S. MOTORS
Jahnda Part Number: 34W99N
EA
Description
Motor 3-Phase Open Dripproof Motor Enclosure Design 100 HP Nameplate RPM 3 554 Frame 365TS Voltage 230V 460V 60 Hz Hz Three Phase Full Load Amps 221.0/110.0 A Horizontal Footed Motor Mounting Type Ins. Class F Motor Service Factor 1.15 Motor Frame Material Steel Max Ambient Temp 104 Degrees F Nominal Efficiency 94.1 Percent CSA Certified ENERGY cURus
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 600.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
