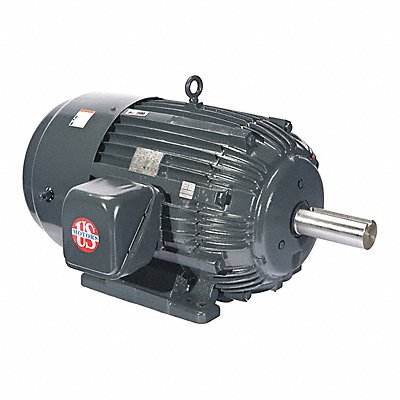

Motor 3PH 100HP 3600 230/460V EFF 94.1
Manufacturer: U.S. MOTORS
Jahnda Part Number: 33W99N
EA
Description
Motor Three Phase Motor Design 3-Phase 100 HP Nameplate RPM 3 554/2 940 No of Speeds 1 Voltage 200V 230V 400V 460V Full Load Amps 221.0/110.0 A 365TS Frame Usable @ 200V Yes Hz 60/50 Hz Motor Service Factor 1.15 Max Ambient Temp 104 Degrees F Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Open Dripproof Motor Shaft Rotation CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Motor Shaft Design Keyed
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 600.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
