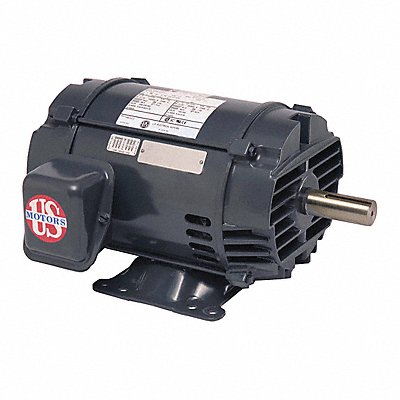

Motor 3PH 100HP 1800 230/460V TE VFD CT
Manufacturer: U.S. MOTORS
Jahnda Part Number: 27W99N
EA
Description
Motor 3-Phase Totally Enclosed Fan-Cooled Motor Enclosure Design 100 HP Nameplate RPM 1 785 Frame 405T Voltage 230V 460V 60 Hz Hz Three Phase Full Load Amps 226.0/113.0 A Ins. Class H Motor Service Factor 1 Motor Frame Material Cast Iron Max Ambient Temp 104 Degrees F CW/CCW Motor Shaft Rotation Nominal Efficiency 95.4 Percent CSA Certified UL Listed
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 1180.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
