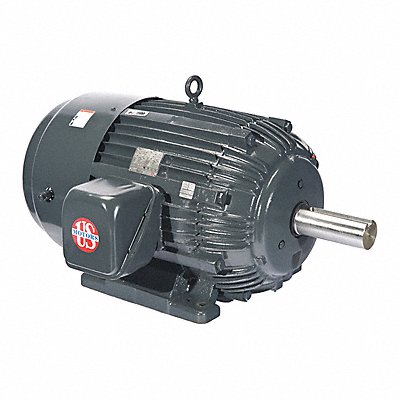

Motor 3PH 100HP 1800 230/460V EFF 95.4
Manufacturer: U.S. MOTORS
Jahnda Part Number: 86B18K
EA
Description
Motor Three Phase Motor Design 3-Phase 100 HP Nameplate RPM 1 785/1 475 No of Speeds 1 Voltage 190V 230V 380V 460V Full Load Amps 225.0/112.0 A 404T Frame Hz 60/50 Hz Motor Service Factor 1.15 Max Ambient Temp 104 Degrees F Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Open Dripproof Motor Shaft Rotation CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Inverter Rated Yes Motor Shaft Design Keyed
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 750.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
