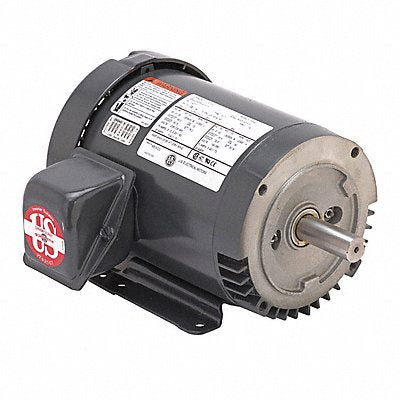

Motor 3PH 1.5HP 3600 230/460V VFD TE
Manufacturer: U.S. MOTORS
Jahnda Part Number: 31A38K
EA
Description
Motor Three Phase Motor Design 3-Phase 1 1/2 HP Nameplate RPM 3 505 No of Speeds 1 Voltage 230V 460V Full Load Amps 3.9/1.9 A 143TC Frame Hz 60 Hz Motor Service Factor 1.15 Max Ambient Temp 104 Degrees F Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Horizontal Footed Motor Mounting Position Horizontal Inverter Rated Yes Motor Shaft Design Keyed
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 37.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
