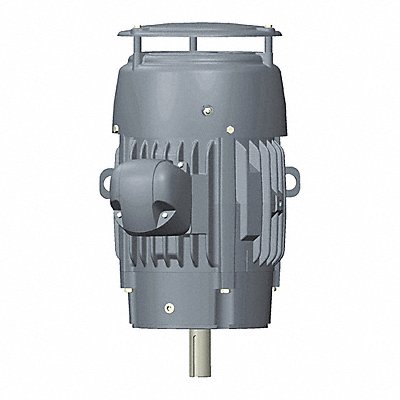

Motor 3PH 1.5HP 208-230/460V EFF 86.5
Manufacturer: U.S. MOTORS
Jahnda Part Number: 05W99N
EA
Description
Motor 3-Phase Totally Enclosed Fan-Cooled Motor Enclosure Design 1 1/2 HP Nameplate RPM 1 755/1 435 Frame 145TC Voltage 190V 208-230/460V 380V 60/50 Hz Hz Three Phase Full Load Amps 4.5-4.3/2.1 A C Face Vertical Motor Mounting Type Ins. Class F Motor Service Factor 1.15 Motor Frame Material Steel Max Ambient Temp 104 Degrees F CW/CCW Motor Shaft Rotation Nominal Efficiency 86.5 Percent CSA Certified ENERGY cURus
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 70.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
