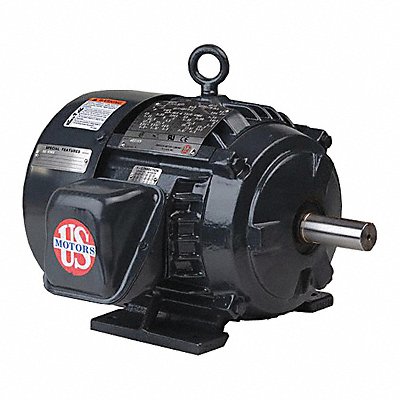

Motor 3PH 1.5HP 1800 460V EFF 89.5

Motor Three Phase Motor Design 3-Phase 1 1/2 HP Nameplate RPM 1 775 No of Speeds 1 Voltage 460V Full Load Amps 2.1 A 184 Frame Hz 60 Hz Motor Service Factor 1.15 Max Ambient Temp 104 Degrees F Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Totally Enclosed Nonventilated Motor Shaft Rotation CW/CCW Motor Mounting Type Horizontal Footed Motor Mounting Position Horizontal Removable Base Regreasable Bearings Motor Frame Material Cast Iron
