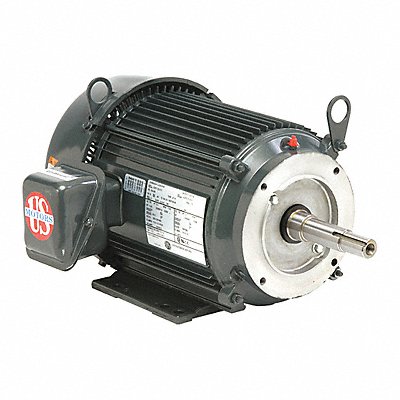

Motor 3PH 1.5HP 1800 230/460V ACCU-torq

Motor 3PH 1.5HP 1800 230/460V ACCU-torq Three Phase Motor Design 3-Phase 1 1/2 HP Nameplate RPM 1 760 rpm No of Speeds 1 Voltage 230/460V Full Load Amps 4.7/2.3 A 145 Frame Torque 665 ft-lb Max Speed 1 760 RPM 60 Hz Hz Max Operating Frequency 60 Hz Motor Service Factor 1 Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Non-Ventilated Motor Mounting Type Horizontal Footed
