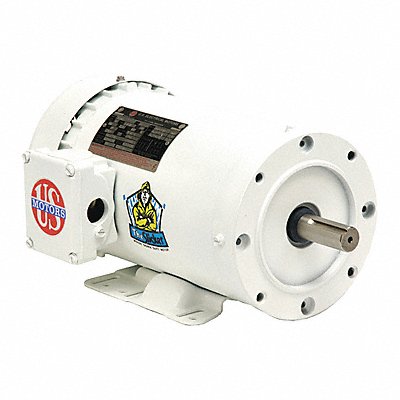

Motor 3PH 1.5HP 1800 208-230/460V PF 56C
Manufacturer: U.S. MOTORS
Jahnda Part Number: 28U38K
EA
Description
Three Phase Motor Three Phase Motor Design 3-Phase 1 1/2 HP No of Speeds 1 Voltage 208-230/460 190/380 Full Load Amps 4.9-4.8/2.4 A 56 Frame Usable @ 208V Yes 60/50 Hz Motor Service Factor 1 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C NEMA Design B Motor Shaft Rotation CCW Motor Enclosure Design Totally Enclosed Non-Ventilated Motor Mounting Type Face Motor Frame Material Stainless Steel
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 50.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
