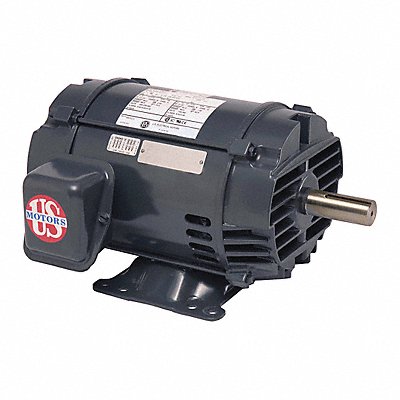

Motor 3PH 1.5HP 1800 208-230/460V ODP 56
Manufacturer: U.S. MOTORS
Jahnda Part Number: 10W99N
EA
Description
Motor 3-Phase Open Dripproof Motor Enclosure Design 1 1/2 HP Nameplate RPM 1 725/1 425 Frame 56H Voltage 208V 230V 460V 60/50 Hz Hz Three Phase Full Load Amps 5.0-4.8/2.4 A Rigid Base Motor Mounting Type Motor Thermal Protection None Ins. Class B Motor Service Factor 1.15 Motor Frame Material Steel Max Ambient Temp 104 Degrees F CCW Motor Shaft Rotation CE CSA Certified UL Listed
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 33.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
