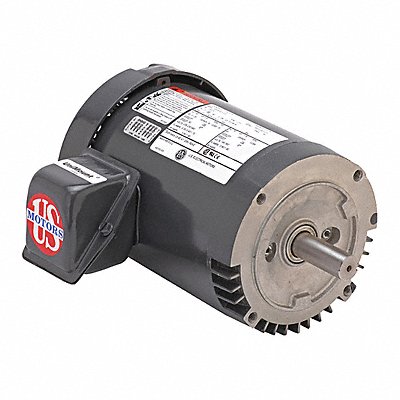

Motor 3PH 1.5HP 1800 208-230/460V EFF 76
Manufacturer: U.S. MOTORS
Jahnda Part Number: 09W99N
EA
Description
Motor 3-Phase Totally Enclosed Fan-Cooled Motor Enclosure Design 1 1/2 HP Nameplate RPM 1 725 Frame 56C Voltage 208V 230V 460V 60 Hz Hz Three Phase Full Load Amps 5.1-5.0/2.5 A Motor Thermal Protection None Ins. Class F Motor Service Factor 1.15 Motor Frame Material Aluminum Max Ambient Temp 104 Degrees F CCW Motor Shaft Rotation Nominal Efficiency 76 Percent CSA Certified UL Listed
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 26.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
