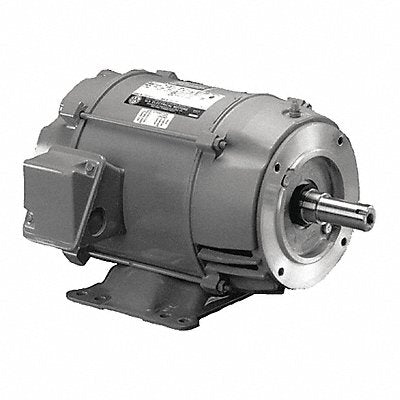

Motor 3PH 1.5HP 1800 208-230/460V CCP JM

Close Coupled Pump Bearing Protection Shaft Shields Body Dia 6.4 in Bolt Circle Dia 5 7/8 in Duty Cycle Continuous Frame 145JM Hz 60/50 Full Load Amps 4.4-4.2/2.1 Height 6 3/4 in HP 1 1/2 Ins. Class F Length Less Shaft 11 1/8 in Max Ambient Temp 40 Degrees C Max SF Amps 5.0-4.6.0/2.3 Motor Application Damp Dusty or Dirty Environments Specific Requirements of Centrifugal Pumps where the Pump Impeller is Mounted Directly on the Motor Shaft Motor Bearings Ball
