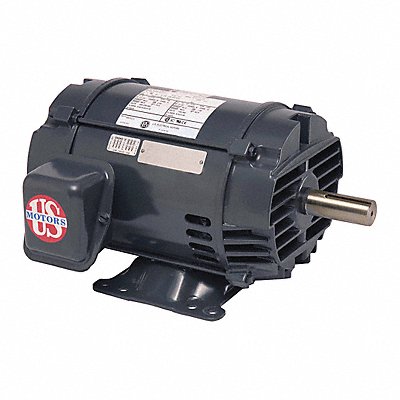

Motor 3PH 1/4HP 1800 208-230/460V 48 FR
Manufacturer: U.S. MOTORS
Jahnda Part Number: 23W99N
EA
Description
Motor 3-Phase Open Dripproof Motor Enclosure Design 1/4 HP Nameplate RPM 1 725 Frame 48 Voltage 208V 230V 460V 60 Hz Hz Three Phase Full Load Amps 1.3-1.3/0.70 A Rigid Base Motor Mounting Type Motor Thermal Protection None Ins. Class B Motor Service Factor 1.35 Motor Frame Material Steel Max Ambient Temp 104 Degrees F CCW Motor Shaft Rotation Nominal Efficiency 69.5 Percent CE CSA Certified UL Listed
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 17.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
