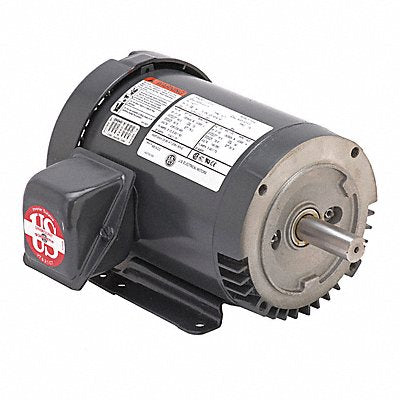

Motor 3PH 1/3HP 1800 208-230/460V EFF 65
Manufacturer: U.S. MOTORS
Jahnda Part Number: 09R29K
EA
Description
Motor Three Phase Motor Design 3-Phase 1/3 HP Nameplate RPM 1 725/1 425 No of Speeds 1 Voltage 208V 230V 460V Full Load Amps 1.5-1.5/0.75 A 42CZ Frame Usable @ 208V Yes Hz 60/50 Hz Motor Service Factor 1 Max Ambient Temp 104 Degrees F Ins. Class B NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CCW Motor Mounting Type Face Motor Shaft Design Keyed Motor Frame Material Steel
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 9.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
