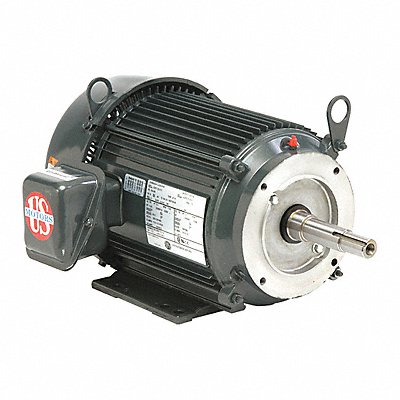

Motor 3PH 1/2HP 1800 208-230/460V EFF 84
Manufacturer: U.S. MOTORS
Jahnda Part Number: 70A58K
EA
Description
Motor 3PH 1/2HP 1800 208-230/460V EFF 84 Three Phase Motor Design 3-Phase 1/2 HP No of Speeds 1 Voltage 208-230/460V Full Load Amps 2.0-2.1/1.1 A 56 Frame Torque 155.5 ft-lb Max Speed 1 725 RPM Usable @ 208V Yes 60 Hz Hz Max Operating Frequency 60 Hz Motor Service Factor 1.15 Ins. Class F Max Ambient Temp 40 Degrees C NEMA Design B Motor Shaft Rotation CCW Motor Enclosure Design Totally Enclosed Non-Ventilated Motor Mounting Type C Face Base Inverter Rated Yes
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 26.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
