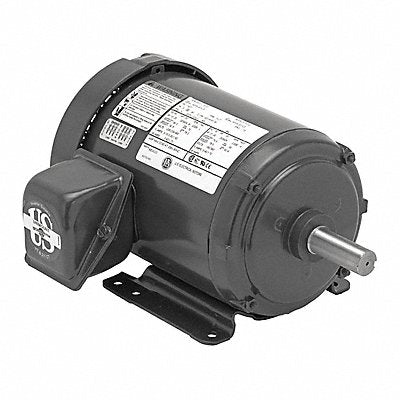

Motor 3PH 1/2HP 1200 208-230/460V
Manufacturer: U.S. MOTORS
Jahnda Part Number: 63T99N
EA
Description
Motor 3-Phase Totally Enclosed Fan-Cooled Motor Enclosure Design 1/2 HP Nameplate RPM 1 140 Frame 56 Voltage 208V 230V 460V 60 Hz Hz Three Phase Full Load Amps 2.2-2.3/1.1 A Rigid Base Motor Mounting Type Motor Thermal Protection None Ins. Class B Motor Service Factor 1.15 Motor Frame Material Steel Max Ambient Temp 104 Degrees F CCW Motor Shaft Rotation 1 101-1 200 CE CSA Certified UL Listed
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 28.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
