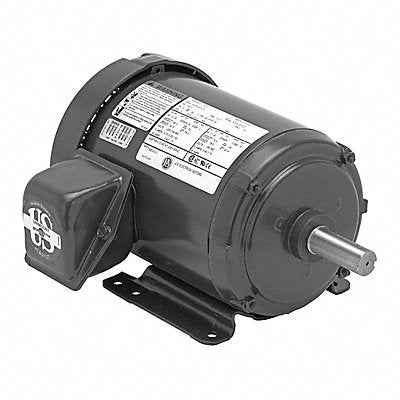

Motor 3PH 1/0.25HP 2 SPD 460V EFF 78.5
Manufacturer: U.S. MOTORS
Jahnda Part Number: 28S88K
EA
Description
Motor Three Phase Motor Design 3-Phase 1 1/4 HP Nameplate RPM 1 745/865 No of Speeds 2 Voltage 460V Full Load Amps 1.6 A 143T Frame Hz 60 Hz Motor Service Factor 1.25 Max Ambient Temp 104 Degrees F Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Totally Enclosed Motor Shaft Rotation CW/CCW Motor Mounting Type Horizontal Footed Motor Mounting Position Horizontal Motor Shaft Design Keyed Removable Base Regreasable Bearings
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 34.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
