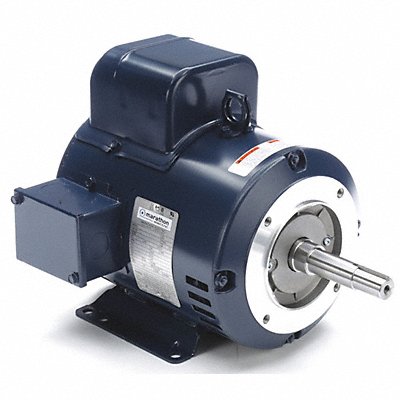

Motor 3 HP 3 500 rpm 182JM 115/230V
Manufacturer: MARATHON MOTORS
Jahnda Part Number: 61R05A
EA
Description
Close-Coupled Pump Motor Conduit Box Location Exterior Conduit Box Position F1 Duty Cycle Continuous Frame 182JM Hz 60 Hz Full Load Amps 32.0/16.1 Height 11 3/16 in HP 3 Ins. Class F Inverter Rated No Length Less Shaft 11 1/16 in Max Ambient Temp 40 Degrees C Motor Application Pump Motor Bearings Ball Motor Design Capacitor-Start Motor Efficiency Group Standard Efficient Motor Enclosure Design Open Dripproof Motor Frame Material Steel
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 63.0 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 26101602 |
| UNSPSC Segment | 26 |
| UNSPSC Family | 2610 |
| UNSPSC Class | 261016 |
| Country of Origin (subject to change) | Mexico |
