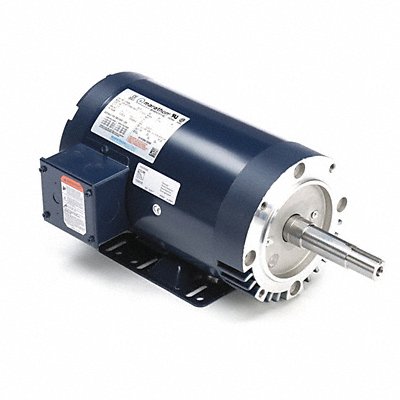

Motor 3 HP 3 490 rpm 145JM 230/460V

Close-Coupled Pump Motor CC Number CC003A Conduit Box Location Exterior Conduit Box Position F1 Duty Cycle Continuous Frame 145JM Hz 60/50 Full Load Amps 7.2/3.6 Full Load Amps @ 50Hz 7.2/3.6 Height 6 3/4 in HP 3 HP @ 50Hz 3 Ins. Class F Inverter Rated Yes Inverter Rating 10 1 Variable Torque 2 1 Constant Torque Length Less Shaft 10 1/2 in Max Ambient Temp 40 Degrees C Motor Application Pump Motor Bearings Ball Motor Design 3-Phase
