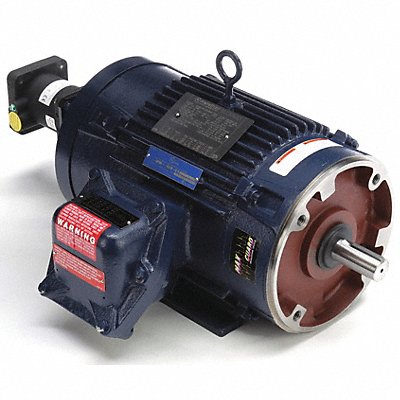

Motor 3 HP 1745 rpm 182TC 230/460V
Manufacturer: MARATHON MOTORS
Jahnda Part Number: 96H05A
EA
Description
Vector Motor Three Phase Motor Design 3-Phase 3 HP Nameplate RPM 1 745 No of Speeds 1 Voltage 230/460V AC Full Load Amps 8.2/4.1 A 182TC Frame Max Speed 3 600 RPM Speed Range 2 000 1 Usable @ 208V No Usable @ 200V No 60 Hz Hz Max Operating Frequency 120 Hz Motor Service Factor 1 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Nonventilated
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 117.0 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 26101602 |
| UNSPSC Segment | 26 |
| UNSPSC Family | 2610 |
| UNSPSC Class | 261016 |
| Country of Origin (subject to change) | United States |
