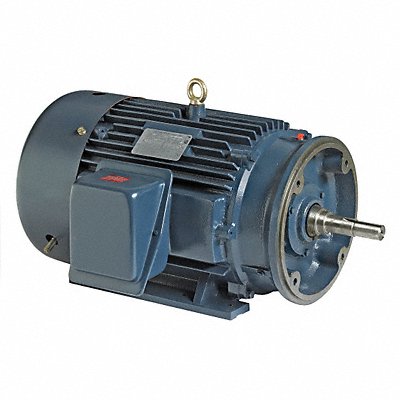

Motor 25 HP 1 775 rpm 284JM 230/460V
Manufacturer: MARATHON MOTORS
Jahnda Part Number: 43I31K
EA
Description
Close-Coupled Pump Motor Body Dia 15.6 in Bolt Circle Dia 11 in CC Number CC003A Conduit Box Location Exterior Conduit Box Position F1 F2 Duty Cycle Continuous Frame 284JM Hz 60 Hz Full Load Amps 60.0/30.0 Height 17 3/16 in HP 25 Ins. Class F Inverter Rated Yes Inverter Rating 10 1 Length Less Shaft 22 in Max Ambient Temp 40 Degrees C Motor Application Pump Motor Bearings Ball Motor Design 3-Phase Motor Efficiency Group NEMA Premium Efficient
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 513.0 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 26101612 |
| UNSPSC Segment | 26 |
| UNSPSC Family | 2610 |
| UNSPSC Class | 261016 |
| Country of Origin (subject to change) | Mexico |
