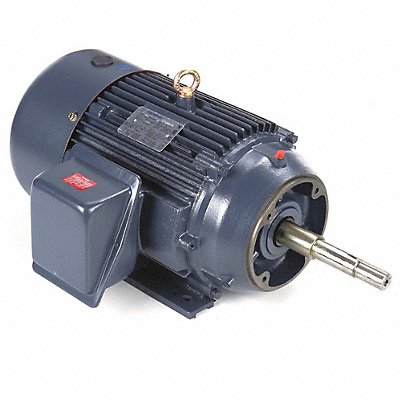

Motor 20 HP 1 770 rpm 256JP 230/460V
Manufacturer: MARATHON MOTORS
Jahnda Part Number: 27F42K
EA
Description
Close-Coupled Pump Motor Body Dia 13.8 in Bolt Circle Dia 7 1/4 in CC Number CC003A Conduit Box Location Exterior Conduit Box Position F1 F2 Duty Cycle Continuous Frame 256JP Hz 60 Hz Full Load Amps 48.5/24.2 Height 15 15/16 in HP 20 Ins. Class F Inverter Rated Yes Inverter Rating 10 1 Length Less Shaft 22 3/8 in Max Ambient Temp 40 Degrees C Motor Application Pump Motor Bearings Ball Motor Design 3-Phase Motor Efficiency Group NEMA Premium Efficient
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 422.0 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 26101612 |
| UNSPSC Segment | 26 |
| UNSPSC Family | 2610 |
| UNSPSC Class | 261016 |
| Country of Origin (subject to change) | Mexico |
