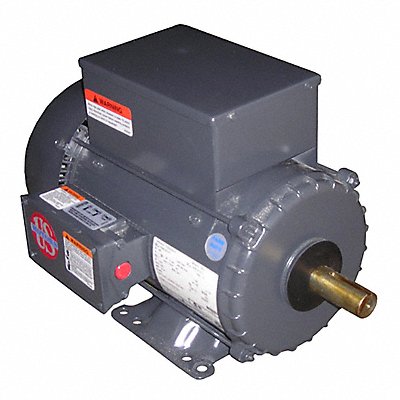

Motor 2 HP 1725 115/230V 56 Hz
Manufacturer: U.S. MOTORS
Jahnda Part Number: 59X20O
EA
Description
Motor Single Phase Motor Design 1-Phase Capacitor-Start 2 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 115/230V Full Load Amps 20.0/10.0 A 56HZ Frame 60 Hz Hz Motor Service Factor 1 Motor Thermal Protection Manual Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Shaft Rotation Reversible Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Rigid Base Motor Frame Material Steel Shaft Dia 77/100 in Shaft Length 2 1/8 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 50.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
