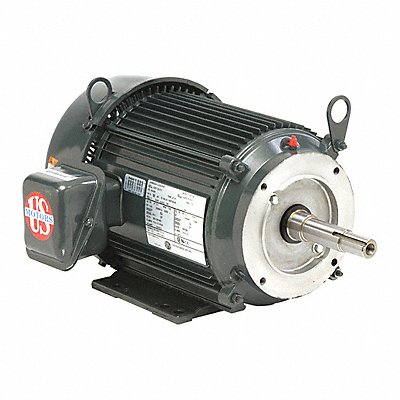

Motor 1PH 7.5HP 1800 230V EFF 81.1 JP
Manufacturer: U.S. MOTORS
Jahnda Part Number: 70E78K
EA
Description
Close Coupled Pump Motor Bearing Protection Shaft Shields Body Dia 11.3 in Duty Cycle Continuous Frame 215 Hz 60 Hz Full Load Amps 33.5 Height 10 7/8 in HP 7 1/2 Ins. Class F Length Less Shaft 18 1/16 in Max Ambient Temp 40 Degrees C Motor Application Centrifugal Pump Motor Enclosure Design Totally Enclosed Motor Frame Material Aluminum
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 120.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
