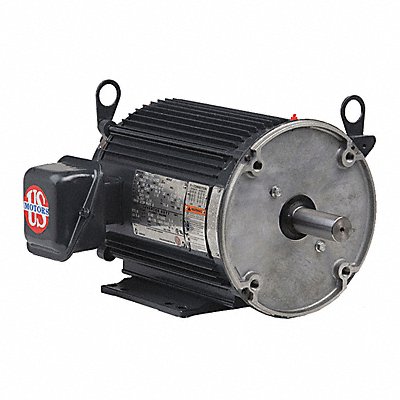

Motor 1PH 1HP 1800 115/208-230V
Manufacturer: U.S. MOTORS
Jahnda Part Number: 84P39K
EA
Description
Single Phase Motor Single Phase Motor Design Capacitor-Start 1 HP No of Speeds 1 Voltage 115/208-230V AC Full Load Amps 15.4/7.8-7.6 A 56 Frame Usable @ 208V Yes 60 Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Motor Shaft Rotation CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Face/Base Finish White Epoxy Paint
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 32.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
