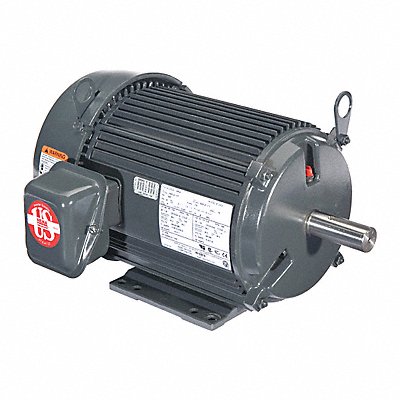

Motor 1PH 10HP 3600 230V EFF 86.9 JP
Manufacturer: U.S. MOTORS
Jahnda Part Number: 67K28K
EA
Description
Close Coupled Pump Motor Bearing Protection Shaft Shields Body Dia 11.3 in Duty Cycle Continuous Frame 215 Hz 60 Hz Full Load Amps 40.0 Height 10 7/8 in HP 10 Ins. Class F Length Less Shaft 18 1/16 in Max Ambient Temp 40 Degrees C Max SF Amps 45.0 Motor Application Centrifugal Pump Motor Enclosure Design Totally Enclosed Motor Frame Material Aluminum
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 145.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
