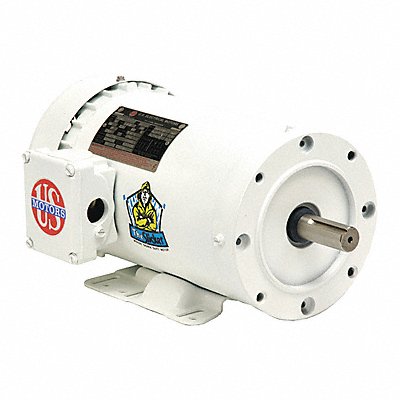

Motor 1PH 1/2HP 3600 115/208-230V
Manufacturer: U.S. MOTORS
Jahnda Part Number: 84V31K
EA
Description
Washdown Motor Single Phase Motor Design Capacitor-Start 1/2 HP Nameplate RPM 3 450 No of Speeds 1 Voltage 115/208-230V AC Full Load Amps 7.3/3.9-3.7 A 56C Frame Usable @ 208V Yes Usable @ 200V No 60 Hz Hz Motor Service Factor 1.2 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Shaft Rotation CCW Motor Enclosure Design Totally Enclosed Nonventilated Motor Mounting Type Face/Base Motor Mounting Position Horizontal
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 29.25 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 26101602 |
| UNSPSC Segment | 26 |
| UNSPSC Family | 2610 |
| UNSPSC Class | 261016 |
| Country of Origin (subject to change) | Mexico |
