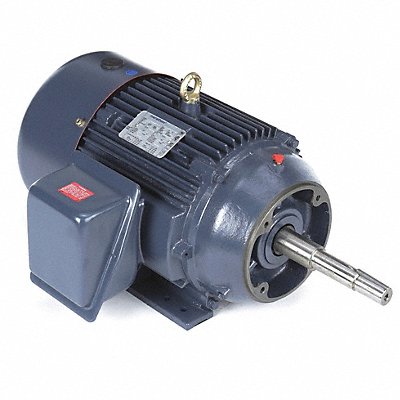

Motor 15 HP 1 770 rpm 254JP 230/460V
Manufacturer: MARATHON MOTORS
Jahnda Part Number: 25F42K
EA
Description
Close-Coupled Pump Motor Body Dia 13.8 in Bolt Circle Dia 7 1/4 in CC Number CC003A Conduit Box Position F1 F2 Duty Cycle Continuous Frame 254JP Hz 60 Hz Full Load Amps 37.5/18.8 Height 15 1/4 in HP 15 Ins. Class F Inverter Rated Yes Inverter Rating 10 1 Length Less Shaft 20 5/8 in Max Ambient Temp 40 Degrees C Motor Application Pump Motor Bearings Ball Motor Design 3-Phase Motor Efficiency Group NEMA Premium Efficient Motor Enclosure Design Totally Enclosed Fan-Cooled
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 357.0 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 26101612 |
| UNSPSC Segment | 26 |
| UNSPSC Family | 2610 |
| UNSPSC Class | 261016 |
| Country of Origin (subject to change) | Mexico |
