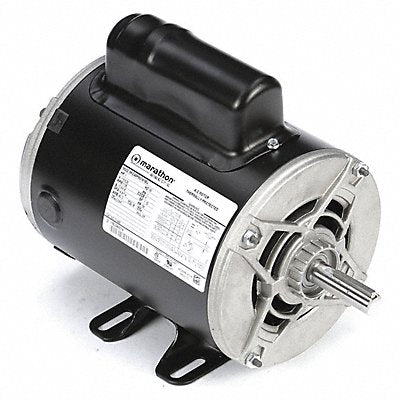

Motor 1 HP 56 115/230V ODP 1725 rpm
Manufacturer: MARATHON MOTORS
Jahnda Part Number: 36W42B
EA
Description
Commercial Duty Air Compressor Motor Single Phase Motor Design Capacitor-Start 1 HP Nameplate RPM 1725 No of Speeds 1 Voltage 115/230V AC Full Load Amps 13.6/6.8 56 Frame 60 Hz Motor Service Factor 1.15 Motor Thermal Protection Manual Ins. Class B Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Dripproof Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Motor Frame Material Steel Shaft Dia 5/8 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 31.0 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 26101602 |
| UNSPSC Segment | 26 |
| UNSPSC Family | 2610 |
| UNSPSC Class | 261016 |
| Country of Origin (subject to change) | Mexico |
