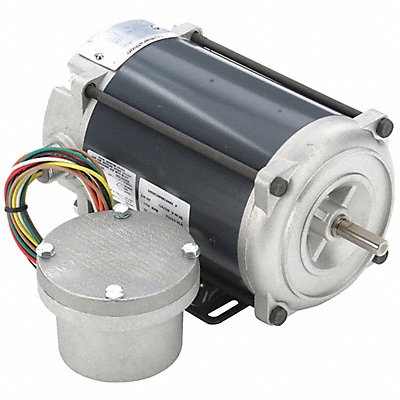

Motor 1/4 HP 1725 rpm 48 115/230V
Manufacturer: MARATHON MOTORS
Jahnda Part Number: 69X73B
EA
Description
Hazardous Location Motor Single Phase Motor Design Capacitor-Start 1/4 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 115/230V AC Full Load Amps 4.2/2.1 A 48 Frame Usable @ 208V No Usable @ 200V No Hz 60 Hz Max Ambient Temp 104 Degrees F Motor Service Factor 1 Motor Thermal Protection Auto Ins. Class B Hazardous Location Class 1 D / 2 F G Temp Code T3B Motor Enclosure Design Totally Enclosed Nonventilated Duty Cycle Continuous Motor Mounting Type Rigid Base
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 22.85 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 26101602 |
| UNSPSC Segment | 26 |
| UNSPSC Family | 2610 |
| UNSPSC Class | 261016 |
| Country of Origin (subject to change) | Mexico |
