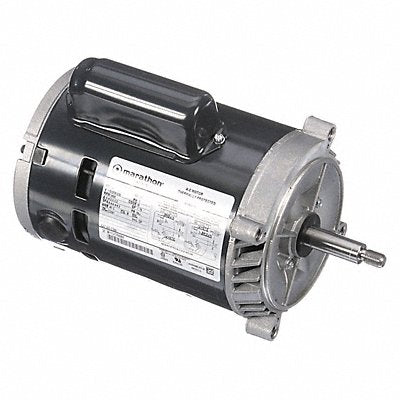

Motor 1/3 HP 3 450 rpm 56J 115/208-230V
Manufacturer: MARATHON MOTORS
Jahnda Part Number: 98T16A
EA
Description
General Purpose Pump Motor Body Dia 5.6 in Bolt Circle Dia 2 15/16 in Conduit Box Location Exterior Duty Cycle Continuous Frame 56J Hz 60 Hz Full Load Amps 6.4 3.0-3.2 HP 1/3 Includes Shaft Slinger Ins. Class B Length Less Shaft 8 13/16 in Max Ambient Temp 40 Degrees C Motor Application Pump Motor Bearings Ball Motor Design Capacitor-Start Motor Efficiency Group Standard Efficient Motor Enclosure Design Open Dripproof Motor Frame Material Steel
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 16.0 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 26101611 |
| UNSPSC Segment | 26 |
| UNSPSC Family | 2610 |
| UNSPSC Class | 261016 |
| Country of Origin (subject to change) | Mexico |
