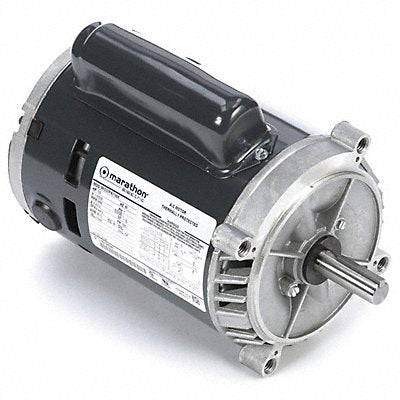

Motor 1/3 HP 3 450 rpm 56C 115/230V
Manufacturer: MARATHON MOTORS
Jahnda Part Number: 58F05A
EA
Description
Jet Pump Motor Body Dia 5.6 in Bolt Circle Dia 2 15/16 in Conduit Box Location Exterior Duty Cycle Continuous Frame 56C Hz 60 Hz Full Load Amps 6.4/3.2 HP 1/3 Ins. Class B Length Less Shaft 8 13/16 in Max Ambient Temp 40 Degrees C Motor Application Pump Motor Bearings Ball Motor Design Capacitor-Start Motor Efficiency Group Standard Efficient Motor Enclosure Design Open Dripproof Motor Frame Material Steel
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 14.6 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 26101602 |
| UNSPSC Segment | 26 |
| UNSPSC Family | 2610 |
| UNSPSC Class | 261016 |
| Country of Origin (subject to change) | Mexico |
